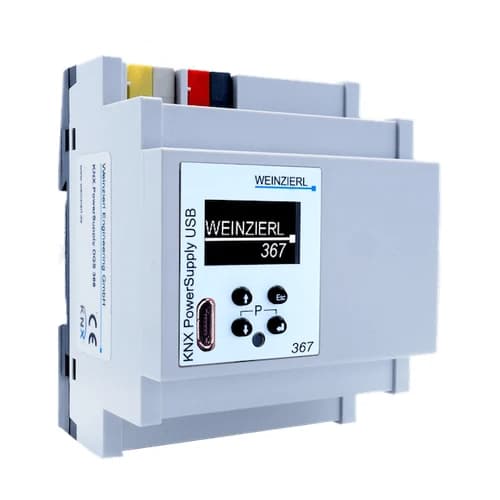

The Weinzierl KNX PowerSupply USB 367 (Art. 5219, SKU W 367) combines a 640 mA KNX line supply, diagnosis node and a galvanically isolated USB programming interface in 4 TE. Bus and auxiliary outputs are 30 V DC SELV with 640 mA shared rating; mains 230 V AC / 50 Hz; ~85 % efficiency.

USB uses HID/cEMI (System B, max. APDU 55 on this interface) via a USB 2.0 Micro-B connector and is supported by ETS 4.2+ and visualisation tools. The KNX node monitors current, bus voltage and temperature; an OLED with four buttons shows parameters locally. Compared with a separate 312.1 plus 365, the 367 saves rail space in small boards. For diagnosis without USB see 366 DGS.

Key Features — 367 USB

• Three-in-one: 640 mA PSU + diagnosis + USB bus interface.
• Galvanic USB isolation: Safe PC connection on Micro-B.
• OLED diagnostics: Local current / voltage / temperature view.
• 4 TE only: Ideal for compact distribution boards.
• ETS configurable: Node parameters and logic in ETS 4.2+.

At a Glance

Specification	Detail
Order / Art.	W 367 · Art. 5219
Output	30 V DC SELV · 640 mA total
USB	Micro-B · HID/cEMI · APDU 55 · galvanic isolation
UI	OLED + 4 buttons · programming LED
Width	4 TE (72 mm) · ~260 g
ETS	4.2 or later

Applications and Related Products

• Small panels: One device for feed and commissioning access.
• Without USB: 366 or 365.
• Dedicated USB-C DIN: 312.1 (Long Frames / APDU 233).

Choosing and Commissioning

Note the USB interface APDU length (55) vs Long-Frame interfaces like 312.1 when Secure/long downloads matter — pick the right tool for the job. Mains install needs disconnect + 16 A fuse. Downloads include datasheet, manual, ETS zip, CAD and CE.
