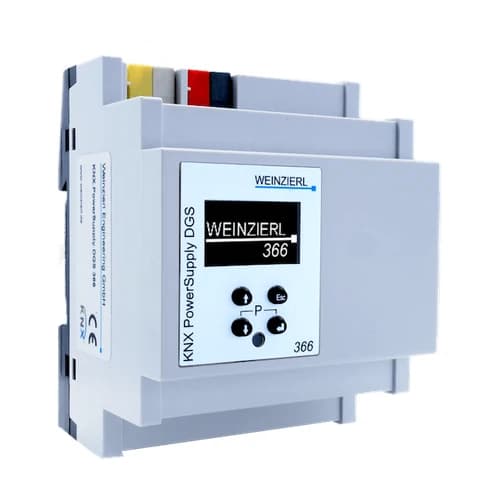

The Weinzierl KNX PowerSupply DGS 366 (Art. 5207, SKU W 366) is a 640 mA KNX bus supply with integrated KNX node, diagnosis and logic — still only 4 TE. Like the 365 it provides a choke, KNX 30 V SELV output and auxiliary 30 V SELV (shared 640 mA rating), ~85 % efficiency and 230 V AC input.

The onboard node monitors output current, bus voltage and enclosure temperature. Logic functions are available in the ETS application (ETS 4.2+). A front OLED display with four buttons shows operating parameters locally, plus a KNX programming button/LED. Choose the simpler 365 without diagnosis UI, or 367 when USB bus access must sit in the same 4 TE block.

Key Features — 366 DGS

• 640 mA + choke: Same power class as 365 in 4 TE.
• Diagnosis node: Current, voltage and temperature on the bus / display.
• OLED + 4 buttons: Local readout without a laptop.
• Logic functions: Application logic configured in ETS.
• Auxiliary 30 V: YE/WH SELV output.

At a Glance

Specification	Detail
Order / Art.	W 366 · Art. 5207
Output	30 V DC SELV · 640 mA total
Diagnosis	Current · bus voltage · temperature
UI	OLED + 4 buttons · programming LED
Width	4 TE (72 mm) · ~260 g
ETS	4.2 or higher (database in Downloads)

Applications and Related Products

• Serviceable risers: See line health at the PSU without bus tools.
• Basic PSU: 365.
• PSU + USB: 367.

Choosing and Commissioning

Same mains rules as 365: accessible disconnect, 16 A fuse, dry interiors. Program diagnosis/logic objects with the official ETS database. Datasheet, manual, CAD and CE under Downloads.
