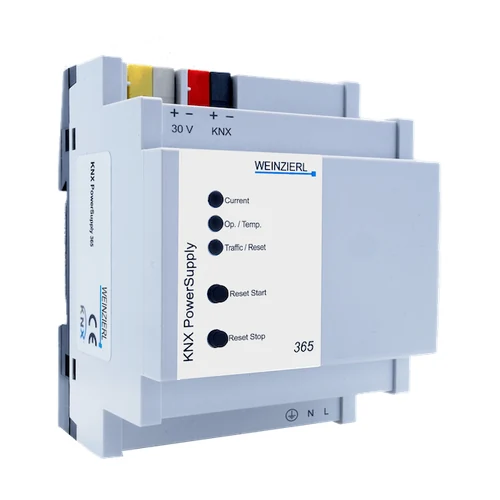

The Weinzierl KNX PowerSupply 365 (Art. 5335, SKU W 365) is a compact 640 mA KNX TP line supply in only 4 TE (72 mm). It includes an integrated bus choke plus a separate 30 V DC SELV auxiliary output (YE/WH). Rated current 640 mA total across KNX and auxiliary outputs. Efficiency at rated load is about 85 % (including choke); no-load loss ~1.2 W; max. ~48 W under overload.

Mains input is 230 V AC / 50 Hz. Two front buttons reset the KNX line; three multicolour LEDs show overload warning, temperature, telegram traffic and reset status. For diagnostics with OLED and logic via ETS choose 366 DGS; for integrated USB commissioning 367 USB.

Key Features — 365

• 640 mA @ 30 V SELV: KNX + auxiliary share the rated current.
• 4 TE footprint: High efficiency (~85 %) with integrated choke.
• Line reset: Dual buttons + LED status (overload / temp / traffic).
• Auxiliary 30 V: Yellow/white connector for SELV loads.
• IP20 MDRC: Dry interior / distribution board install.

At a Glance

Specification	Detail
Order / Art.	W 365 · Art. 5335
Output	30 V DC SELV · 640 mA total (KNX + aux)
Mains	230 V AC · 50 Hz
Width / weight	4 TE (72 mm) · ~260 g
Efficiency	~85 % at rated load
Protection	IP20 · external 16 A overcurrent protection required

Applications and Related Products

• Standard line feed: Compact PSU without display diagnostics.
• Monitored line: 366 DGS.
• PSU + USB: 367; standalone USB 312.1.

Choosing and Commissioning

Install with a readily accessible disconnect device and 16 A external fuse. Cross-section for 230 V terminals 1.5…2.5 mm². Do not open the device; qualified electrician only. Datasheet, manual, CAD and CE under Downloads.
