The Schneider Electric UNICA X thermostat combines an ultra-slim metal room station with 5 or 8 operating keys, integrated temperature sensor, proximity wake, and full HVAC control. One 86 mm plate manages lighting, blinds, scenes, and climate — supporting FCU, VRF, floor heating, and ventilation with a backlit display for setpoint and mode feedback.

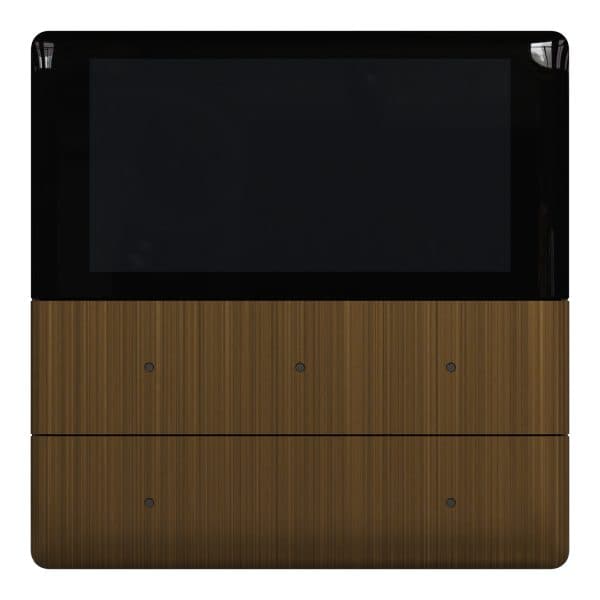

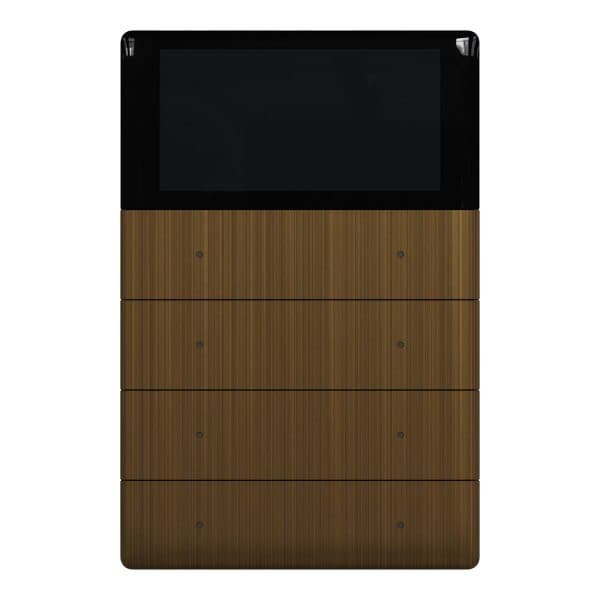

Select metal finish and layout at checkout. Twelve order codes span NUX6212 (5-key + thermostat) and NUX6214 (8-key + thermostat):

Finish	5 keys + thermostat	8 keys + thermostat
Antique Brass	NUX6212_02_AB	NUX6214_02_AB

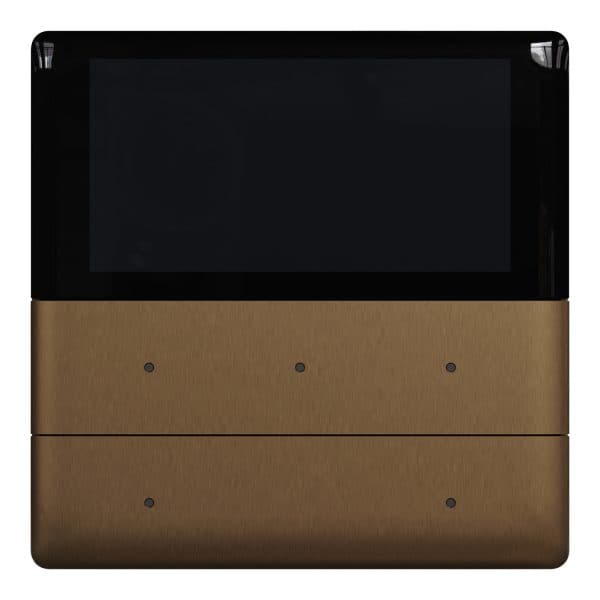

Dark Bronze	NUX6212_02_DB	NUX6214_02_DB
Dark Grey	NUX6212_02_DG	NUX6214_02_DG
Jet Black	NUX6212_02_JB	NUX6214_02_JB
Painted White	NUX6212_02_PW	NUX6214_02_PW

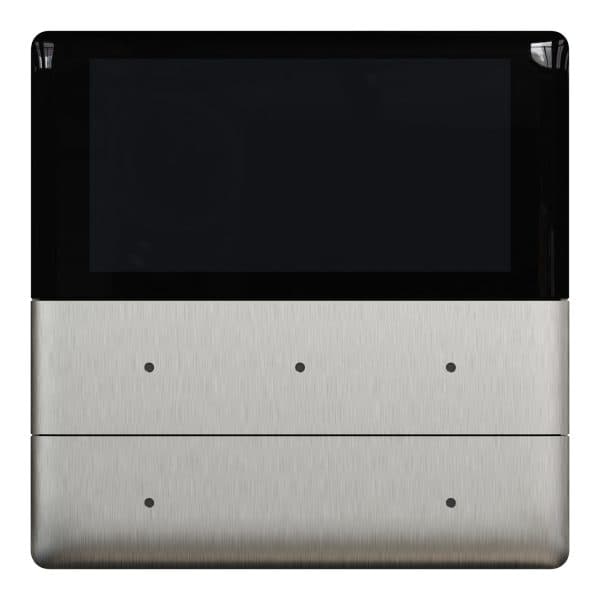

Stainless Steel	NUX6212_02_SS	NUX6214_02_SS

Key Features — UNICA X Thermostat and Room Keys

• Proximity sensor: Interface wakes as you approach; standby brightness adjustable in ETS.
• Temperature sensor: Integrated measurement with calibration; internal, external, or combined reference.
• HVAC: FCU, VRF, floor heating (PI / PWM / 2-point), ventilation; window contact and CO₂ sensor support.
• Ultra-slim metal: 86 × 86 × 8.7 mm plate; six stainless-steel finishes.

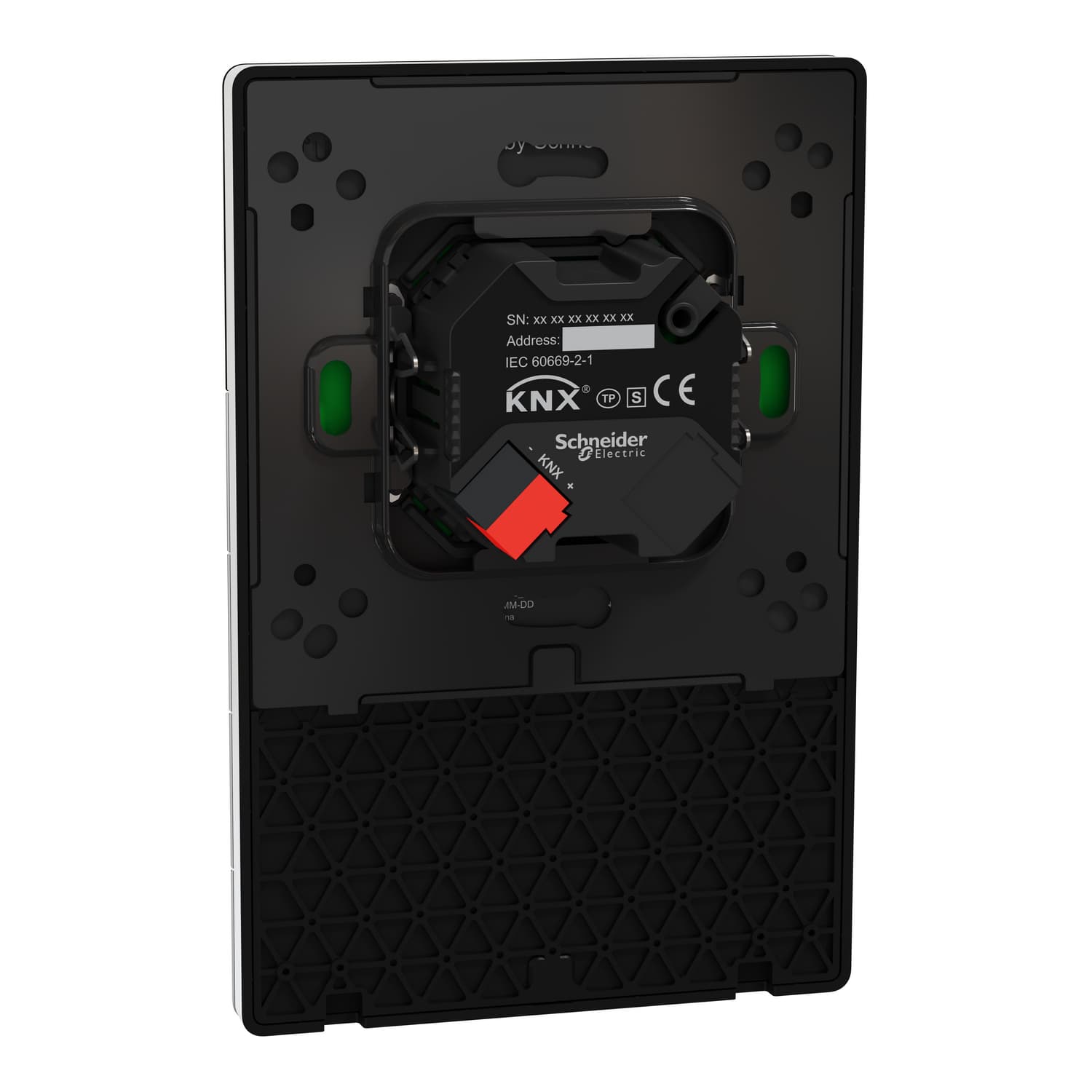

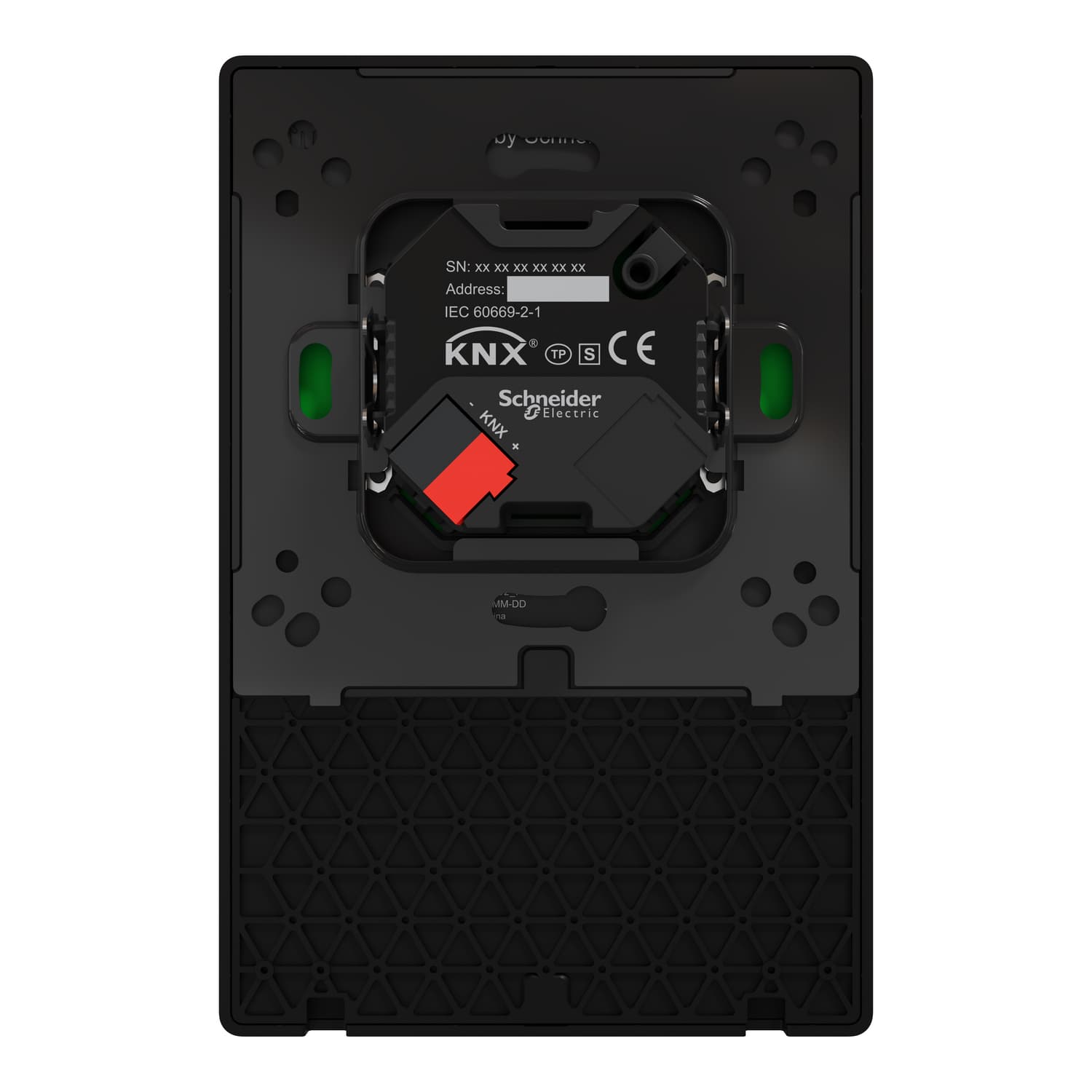

• Bus: Integrated bus coupler (~20 mA); bus connecting terminal included.

At a Glance

Specification	Detail
Product families	NUX6212 (5-key + thermostat), NUX6214 (8-key + thermostat)
ETS application	Multifunction with RTCU and Fan coil 1861/1.0
Weight (typical 5-key)	203 g
Protection	IP20
Stocked variants	12 order codes (2 layouts × 6 finishes)

Full characteristics are under Technical Specifications. Per-SKU datasheets and application description are under Downloads.

Applications and KNX Integration

• Premium suites: Match UNICA X switches on the same plate programme.
• Classic Unica thermostat: Unica KNX Thermostat Button (NP16212 / NP16214) thermoplastic range.
• System M RTCU: MTN6212, MTN6214.
• Fan-coil zones: MTN645094; touch UI MTN6215-0410S.
• Load and bus: MTN6700-0104, MTN684064.
