The Schneider Electric MTN6185 KNX Push-button Pro T is a System M flush-mounted room interface with a flat, minimalist glass surface — backlit icons appear on proximity, and each unit supports 1 to 4 configurable keys plus an integrated temperature sensor and touchless trigger. Manual key operation and proximity gestures coexist in one mechanism.

Choose a finish at checkout — all four stocked variants share ETS application 1841/1.0:

• MTN6185-0319: Polar White, Glossy
• MTN6185-0325: Active White, Glossy

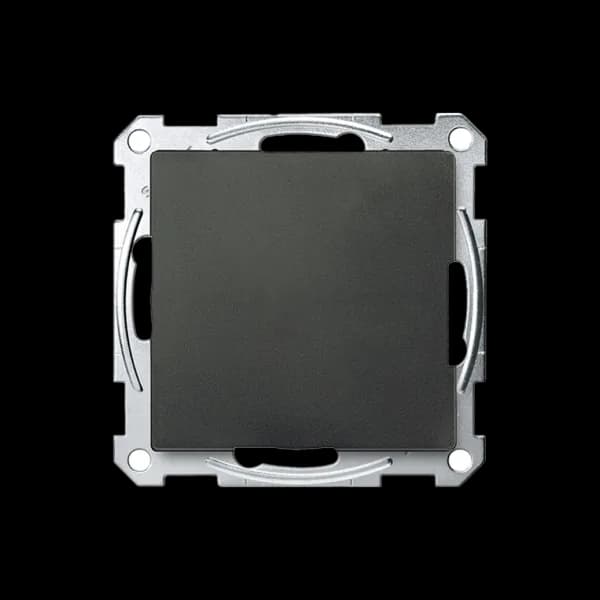

• MTN6185-0414: Anthracite

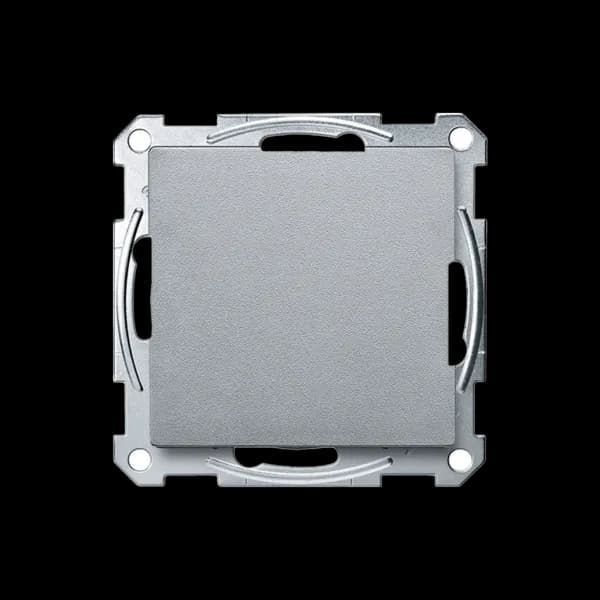

• MTN6185-0460: Aluminium

Key Features — Pro T Room Interface

• Design: Uniform plane surface; icons hidden until proximity wake-up.
• Keys: 1–4 operating buttons (ETS Express or Extended settings).
• Touchless: One proximity-triggered primary function (e.g. welcome scene or main lights).
• Temperature: Integrated room sensor with ETS offset and cyclic value transmission.
• Labelling: 3 prefabricated foils and 24 symbol inserts included.
• Bus: Integrated bus coupler; bus connecting terminal; ~20 mA typical.

At a Glance

Specification	Detail
Product family	MTN6185 KNX Push-button Pro T
ETS application	1841/1.0 (ETS 5.x)
Mounting	Flush-mounted System M
Protection	IP20

Full characteristics are under Technical Specifications. Per-finish datasheets and the application guide are under Downloads.

Applications and KNX Integration

• Modern interiors: Minimal wall presence with proximity lighting and touchless entry scenes.
• HVAC feedback: Temperature object to MTN645094 fan coil or MTN6212 RTCU zones.
• Classic System M: System M push-buttons for tactile 2/4/8-button layouts without proximity.
• Room stations: MTN6212, MTN6214, or MTN6215-0410S for RTCU or touch UI.
• Load actuation: MTN6700-0104, MTN6710-0102S dimming, MTN6300-0019 presence.
• Bus power: MTN684064, MTN6500-0101 line coupler.

Choosing Pro T vs System M Push-buttons

Use MTN6185 Pro T when proximity wake-up, touchless control, and hidden icons matter. Choose System M push-buttons for conventional tactile keys at lower cost, or MTN6212 when an integrated RTCU and display are required.
