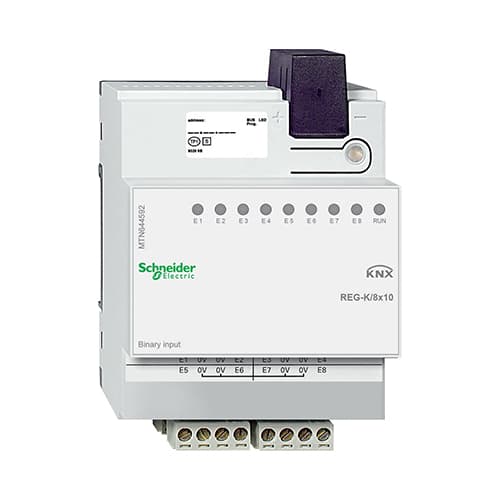

The Schneider Electric MTN644592 is an 8-channel KNX binary input (REG-K/8×10) for connecting conventional push-buttons, floating contacts, and dry contacts to a KNX installation. The device generates an internal SELV contact voltage (electrically isolated from the bus) for safe, reliable signal acquisition.

Each input supports switching, dimming, and blind functions via one or two contacts, with pulse edges (1-, 2-, 4-, or 8-bit), 2-byte telegrams, and 8-bit blind positioning. Status yellow LEDs show input level; a green LED indicates readiness. The 4-module unit (≈ 70 mm) mounts on DIN rail with plug-in screw terminals and cable runs up to 50 m per input. Ideal alongside MTN645094 fan-coil actuators for window and alarm contacts.

Key Features — 8-Channel Binary Input

Inputs and Wiring

• Channels: 8 independent binary inputs.
• Contact voltage: Internally generated SELV (max. 10 V, clocked); pulsing current max. 2 mA.
• Cable length: Up to 50 m per input.
• Isolation: Signal voltage galvanically isolated from KNX bus.
• Terminals: Plug-in screw terminals for fast installation.

KNX Functions

• Control modes: Switching, dimming, blind (1 or 2 inputs per function).
• Telegrams: Pulse edges 1/2/4/8-bit; 2-byte values; 8-bit blind positioning.
• Logic: Short/long press, cyclical sending, 8-bit linear regulator, debounce (ETS).
• Safety: Init telegrams, disable function, configurable debounce times.

At a Glance

Specification	Detail
Order code	MTN644592
Inputs	8
Device width	4 modules (≈ 70 mm)
Colour	Light grey
Max. cable per input	50 m

Full electrical and mechanical data are under Technical Specifications. Official Schneider documentation is under Downloads.

Applications and KNX Integration

• Classic switches: Integrate conventional wall switches into KNX without smart buttons — pair with MTN6700 actuators on the same line.
• Window contacts: Feed open/closed status to HVAC logic on MTN645094 fan-coil zones.
• Alarm inputs: Water leak, intrusion, or condensate contacts with debounce and disable via ETS.
• Blind control: Two-button wired shades when KNX push-buttons are not used in the room.
• Bus power: Supply the line with MTN684064; extend lines with MTN6500-0101.

Choosing Binary Input vs KNX Push-Buttons

Use MTN644592 when existing conventional contacts or long cable runs to classic switches must be connected to KNX. For in-room KNX push-buttons with temperature or display, choose MTN6212 or Unica KNX devices instead.
