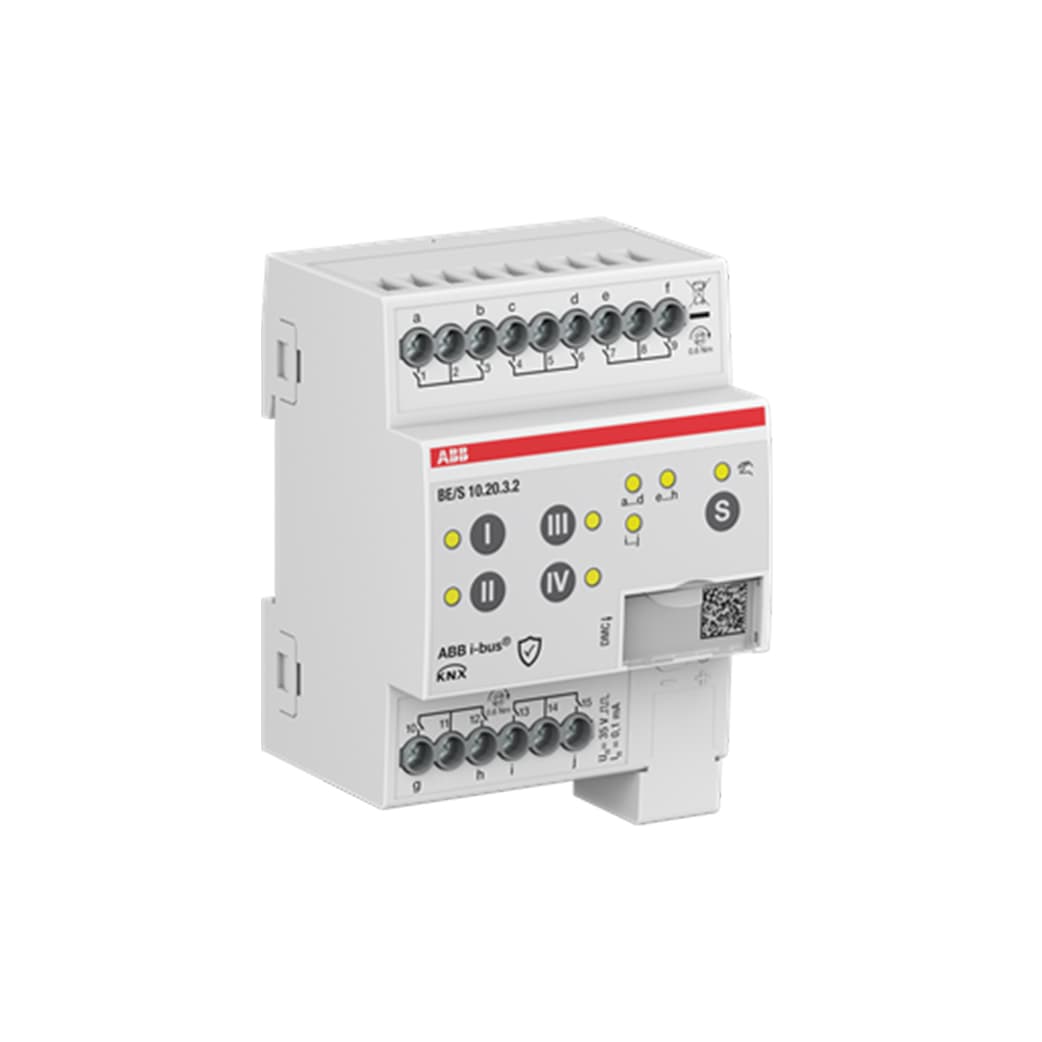

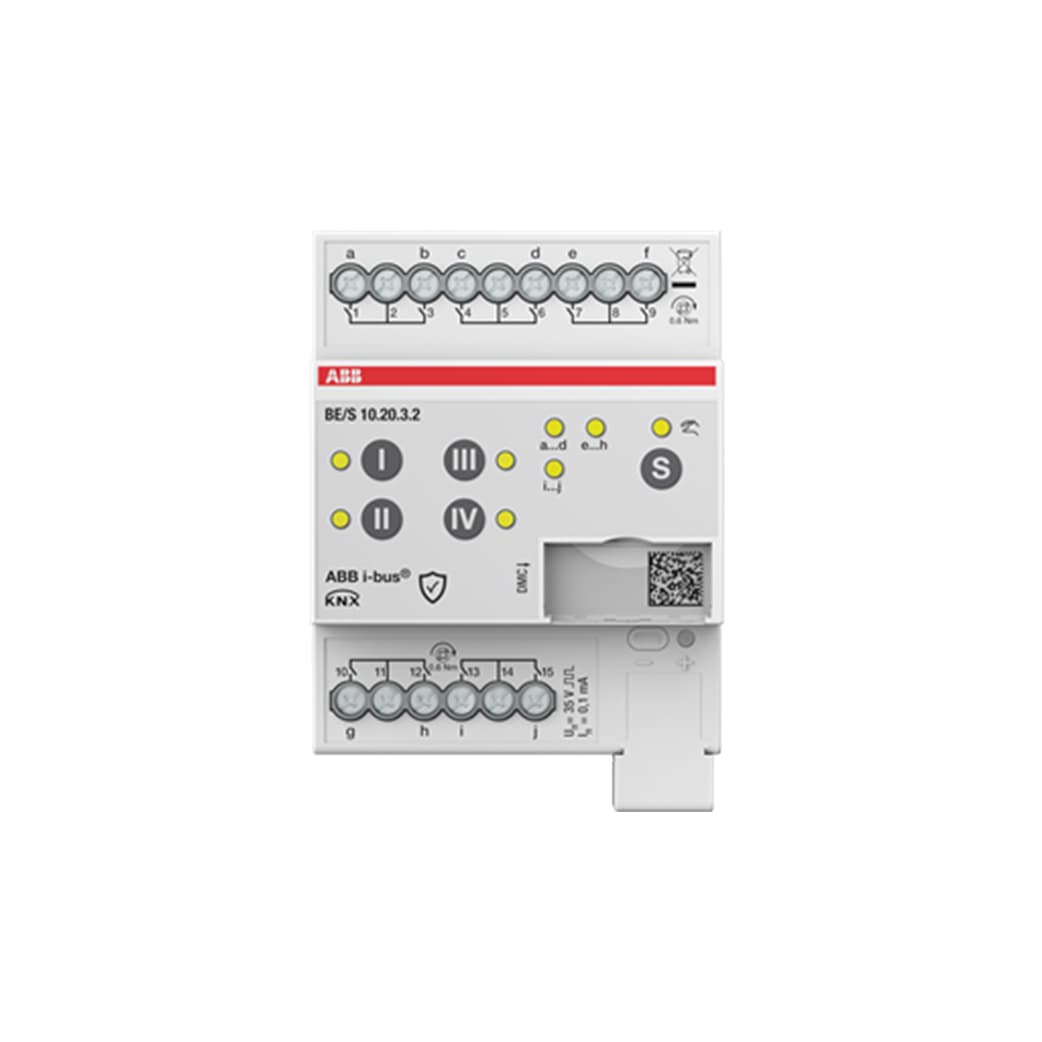

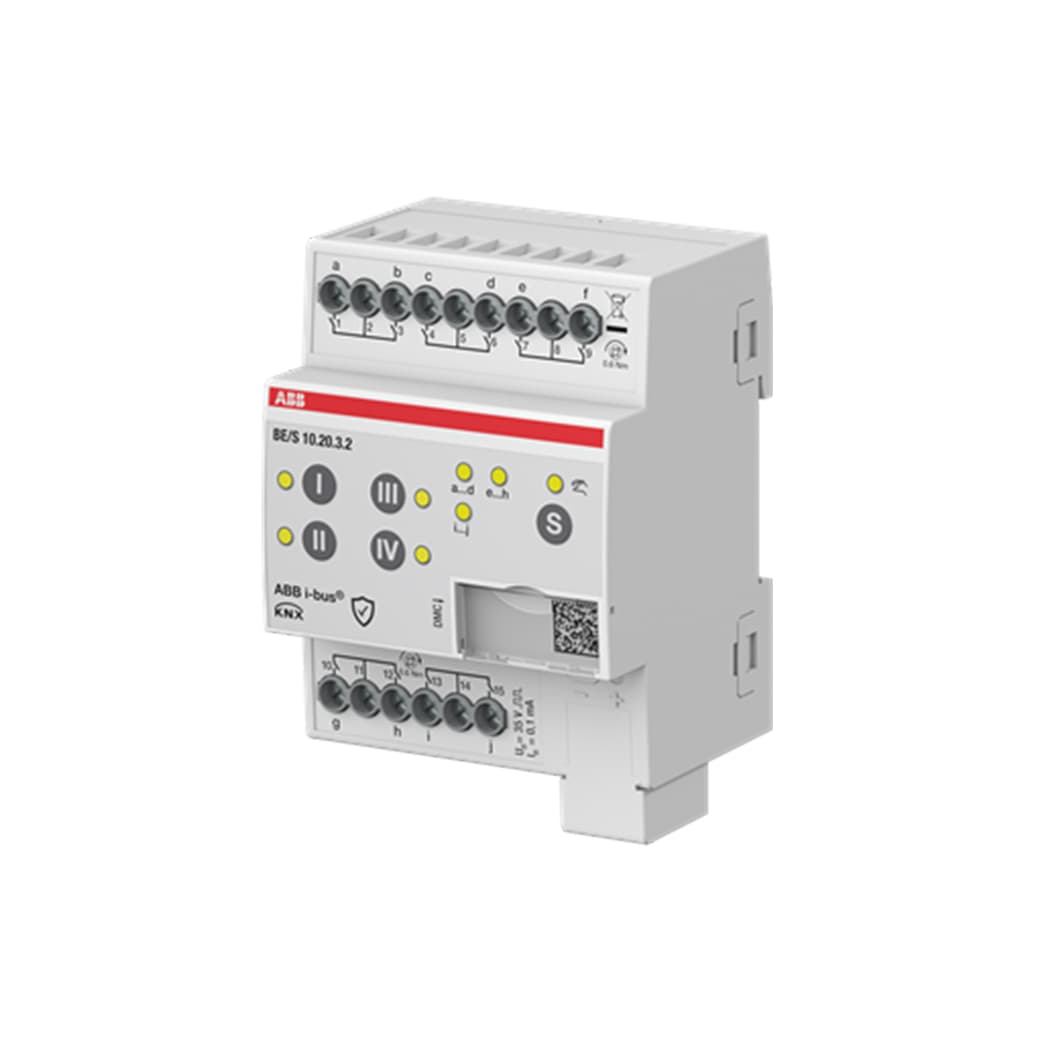

The ABB BE/S10.20.3.2 KNX Binary Input is a high-density modular device (MDRC) that scans 10 independent potential-free (floating) contacts and publishes their states on the ABB i-bus® KNX network. Contact scanning uses an internally generated pulsed scanning voltage (35 V), so no external supply is required at the input terminals — the module is powered entirely from the KNX bus.

Each channel has a manual operation pushbutton for testing and override during commissioning. Input states are indicated by yellow LEDs. The device supports KNX Data Secure for encrypted telegram communication on secure-enabled KNX lines.

Key Features — Contact Scanning and Data Secure

Input Channels

• 10 digital inputs: Independent detection of floating contacts from switches, pushbuttons, relays, or conventional sensors.
• Contact scanning: Internal pulsed scanning voltage — no auxiliary power at inputs.
• Manual operation: Dedicated pushbutton per channel for on-site testing.
• Status indication: Yellow LEDs show input state.

Security and Bus Integration

• KNX Data Secure: Supports encrypted communication on Data Secure-enabled segments.
• Bus powered: No separate auxiliary supply — powered via KNX TP only.
• Low power loss: 0.25 W typical consumption.

At a Glance

Specification	Detail
Product type	KNX Binary Input — 10-fold, Data Secure
Order code	BE/S10.20.3.2 (2CDG110277R0011)
Digital inputs	10 (floating contacts)
Scanning voltage	35 V pulsed (internal)
Manual operation	Yes — pushbutton per channel
KNX Data Secure	Supported
Power loss	0.25 W
Dimensions (W × H × D)	70 × 90 × 63.5 mm (4 MW)
Protection	IP20
Bus system	KNX twisted pair (TP)

Full electrical ratings and classification codes are listed under Technical Specifications. Technical data, product manual, installation instructions, ETS application, CAD, and EPLAN data are under Downloads.

Applications and KNX Integration

• Conventional switch integration: Connect existing potential-free contacts from wall switches, door contacts, or alarm panels to KNX.
• Technical monitoring: Read fault, status, or limit contacts from HVAC plant, pumps, or fire interfaces.
• Secure segments: Deploy on KNX Data Secure lines together with secure-enabled couplers such as the LK/S 4.2 KNX Line Coupler.
• ETS configuration: Import the official .knxprod application (Downloads), assign group addresses per channel, and enable Data Secure parameters as required.
• Power planning: Size the line power supply for 10 inputs plus other bus devices — e.g. SV/S 30.320.1.1 KNX Power Supply 320 mA for medium segments.

Related System Components

Every KNX line requires a dedicated power supply with integrated choke. For small lines with few inputs and actuators, the SV/S 30.160.1.1 KNX Power Supply 160 mA may suffice. For IP backbone connectivity, pair with an IPR/S3.5.1 KNX IP Router Secure or IPR/S3.1.1 KNX IP Router.
