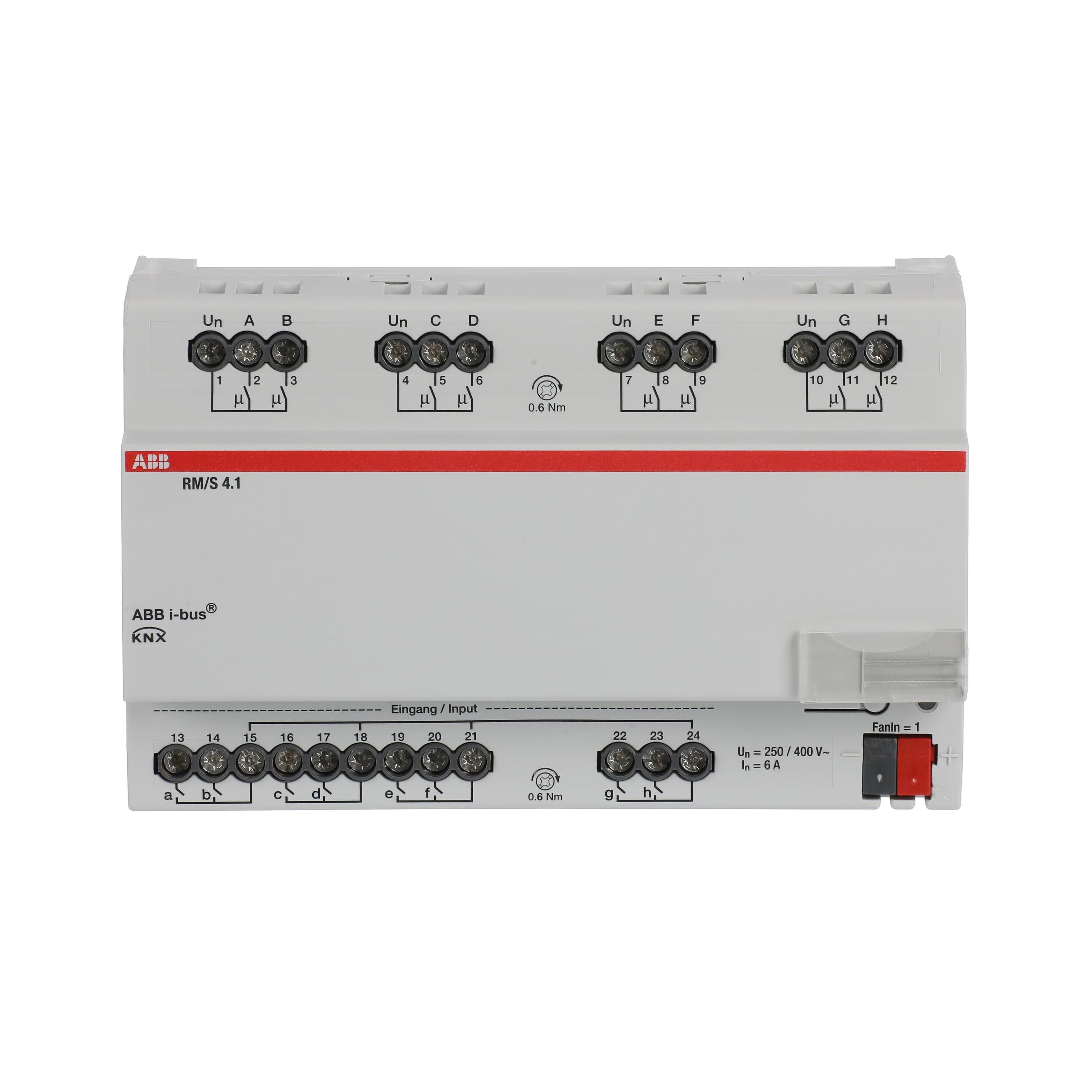

ABB RM/S4.1 is the ABB i-bus® KNX Room Master, MDRC. It controls apartment areas, typically in hotels and small apartments, through eight pulsed digital inputs and eight switching outputs.

Compact ETS-programmable switching model with eight inputs and eight 6 A outputs. ABB does not state the shutter-output configuration provided by RM/S3.1.

Integrated Room Functions

• Inputs: 8 pulsed digital inputs, 35 V.
• Outputs: 8 switching outputs, 6 A.
• Local operation: Not provided.
• KNX integration: The Room Master is a complete KNX TP DIN-rail device, not a plug-in module for the RC/A Room Controller.

Model Selection

Room Master variants have materially different input/output layouts and application concepts. Select the exact RM/S4.1 type for the required room functions; terminals, channel counts and application parameters must not be inferred from another RM/S model.

At a Glance

Specification	Detail
Catalog description	Room Master, MDRC
Order code	RM/S4.1 (2CDG110170R0011)
EAN	4016779881265
Inputs	8 pulsed digital inputs, 35 V
Outputs	8 switching outputs, 6 A
Maximum switching current	6 A per output
Output voltage	230 V AC
Power loss	1.85 W
Dimensions (H × W × D)	90 × 144 × 64.5 mm
DIN-rail width	8 modules
Net weight	0.3 kg
Protection	IP20

Planning, Installation and Commissioning

Install the MDRC device on 35 mm DIN rail in a suitable distribution enclosure. Installation and commissioning must be performed by a qualified electrician. Isolate hazardous voltages before wiring, keep KNX SELV conductors separated from mains circuits, and follow the type-specific ABB wiring diagram and instructions.

Use only the documents listed below for RM/S4.1. ABB does not currently expose a confirmed standalone ETS package for this model, so no guessed or legacy application download is presented.
