The ABB KNX Corridor Presence Detector (series 6131/50-xxx-500) provides rectangular corridor detection for aisles and circulation routes. Two channels with constant light switching keep lighting on only when people are present and daylight is insufficient.

Available in white, aluminium, and black finishes.

Key Features

• Rectangular pattern: Optimised for long, narrow corridors (align the device correctly).
• 2 channels: Occupancy- and brightness-linked lighting control.
• Sector groups: Sensor groups 1/2 and 3/4 can be disabled via parameters.
• Approach vs crosswise: Detection differs for central approach versus crosswise movement.
• Integrated KNX bus coupler: Direct TP connection.

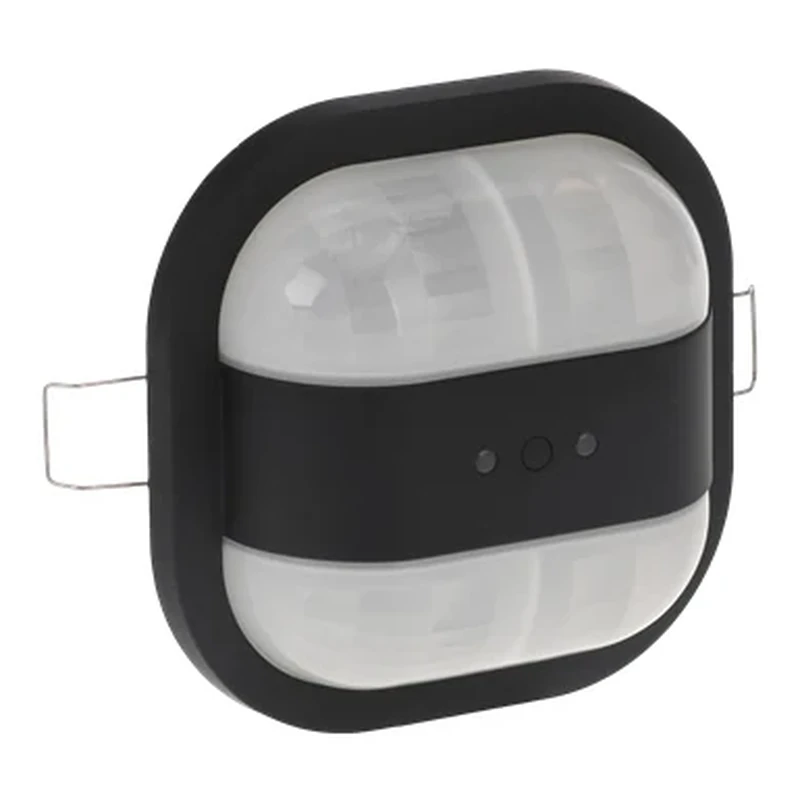

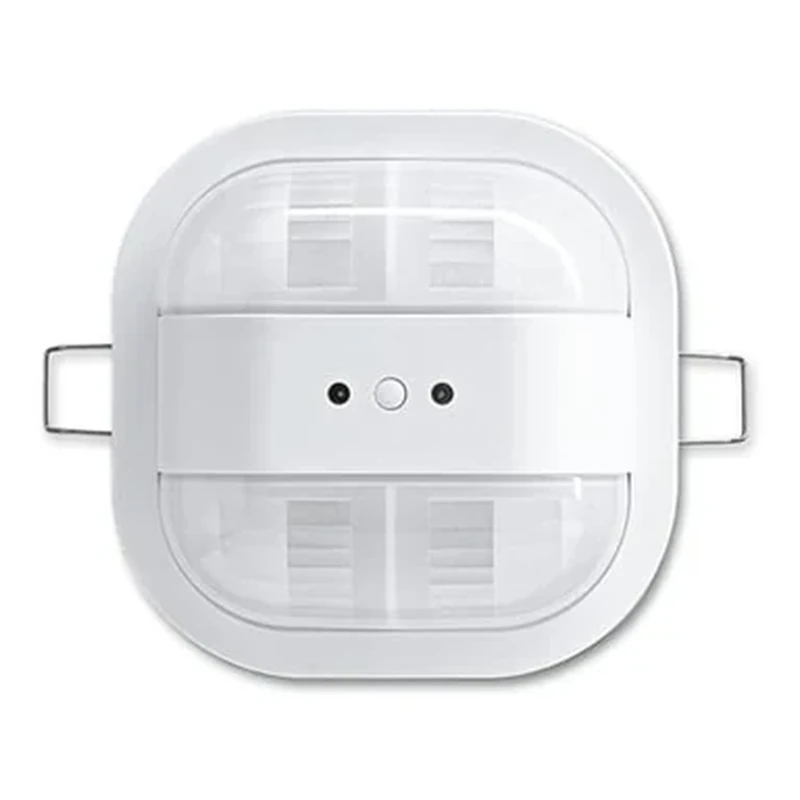

• Three finishes: White (6131/50-24-500), Aluminium (6131/50-183-500), Black (6131/50-885-500).

Detection Range

• Corridor coverage: Rectangular footprint; mounting typically 2.5 … 4 m (see ABB datasheet).

At a Glance

Specification	Detail
Product type	KNX corridor presence detector — rectangular detection, 2 channels
Order codes	6131/50-24-500 · 6131/50-183-500 · 6131/50-885-500
Detection	Rectangular — corridors / aisles
Channels	2 independent
Mounting	Ceiling — flush, surface (6131/39), or VDE box (6131/38)
Visible height	≈ 27 mm
Protection	IP20
Bus system	KNX twisted pair (TP)
Finishes	White · Aluminium · Black

Select a finish below for the exact manufacturer order code (SKU) and pricing. Full details are listed under Technical Specifications.

Premium corridor: 6131/51 Corridor Premium.

Order Codes — Finish Variants

Finish	Order code	Product ID
White	6131/50-24-500	2CKA006132A0399
Aluminium	6131/50-183-500	2CKA006132A0400
Black	6131/50-885-500	2CKA006300A1596

Installation Notes

Align the rectangular field with the corridor axis. Surface housing 6131/39; VDE box ring 6131/38.
